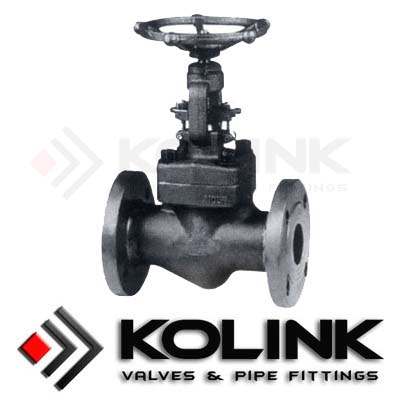

Forged Steel Globe Valve -> Forged Steel Globe Valve (Flanged End)
For globe valves smaller than 2"(DN50), forged steel valves are recommended. Compared with castings, forged valve bodies offer the advantages of more uniform structure, greater density, higher strength integrity, enhanced dimensional characteristics and closer dimensional tolerances.
The design of forged steel globe valves are also various: Full port, conventional port / reduced port; bolt bonnet, welded bonnet and pressure seal bonnet; socket weld (SW), threaded, butt welded (BW) and flanged end. Special designs include bellows seal globe valve, cryogenic globe valve , extended body globe valve, per customers' requirements.
Features of Forged Steel Globe Valves (Flanged End):
Straight Pattern Body Design
Swivel Plug Disc Design Standard
Flat and Regulating Type Disc Available
Outside Screw & Yoke
Bolted Bonnet, Welded Bonnet or Pressure Seal Bonnet
Welded-in or Integral Flanged End
Applicable standards of Forged Steel Globe Valves (Flanged End):
a) Design & Manufacture: API 602, BS 5352, ASME B16.34
b) Face to Face: ASME B16.10, EN 558
c) Connection End: ASME B1.20.1, ASME B16.11, ASME B16.25, ASME B16.5, EN 1092
d) Test and Inspection : API 598, EN 12266
Sizes: 1/2" - 2" or DN12 - DN50
Pressure Rating: Class 150 - Class 2500 or PN 16 - PN 420
Material of valve body: A105, LF2, F11, F22, F5, F304, F304L, F316, F316L, etc.
Operated by: Handwheel
